JASA QUICK PACK Multifunctional packaging machine

The multi-talent for packing products into nets.

Packaging with countless possibilities.

The JASA QUICK PACK multifunctional packaging machine offers extensive functions for packaging fruit and vegetables in nets with film. For example, up to 35 programmes can be stored and selected. At the same time, synchronisation with weighing machines is possible in order to pack the optimum quantities. In addition, a bag length as well as filling control is carried out by means of special photocells. Due to the safety control of the sealing bars, the machine is automatically switched off in case of errors. This makes the packaging process safe and efficient.

Suitable products

Fruit

Vegetables

Equipment

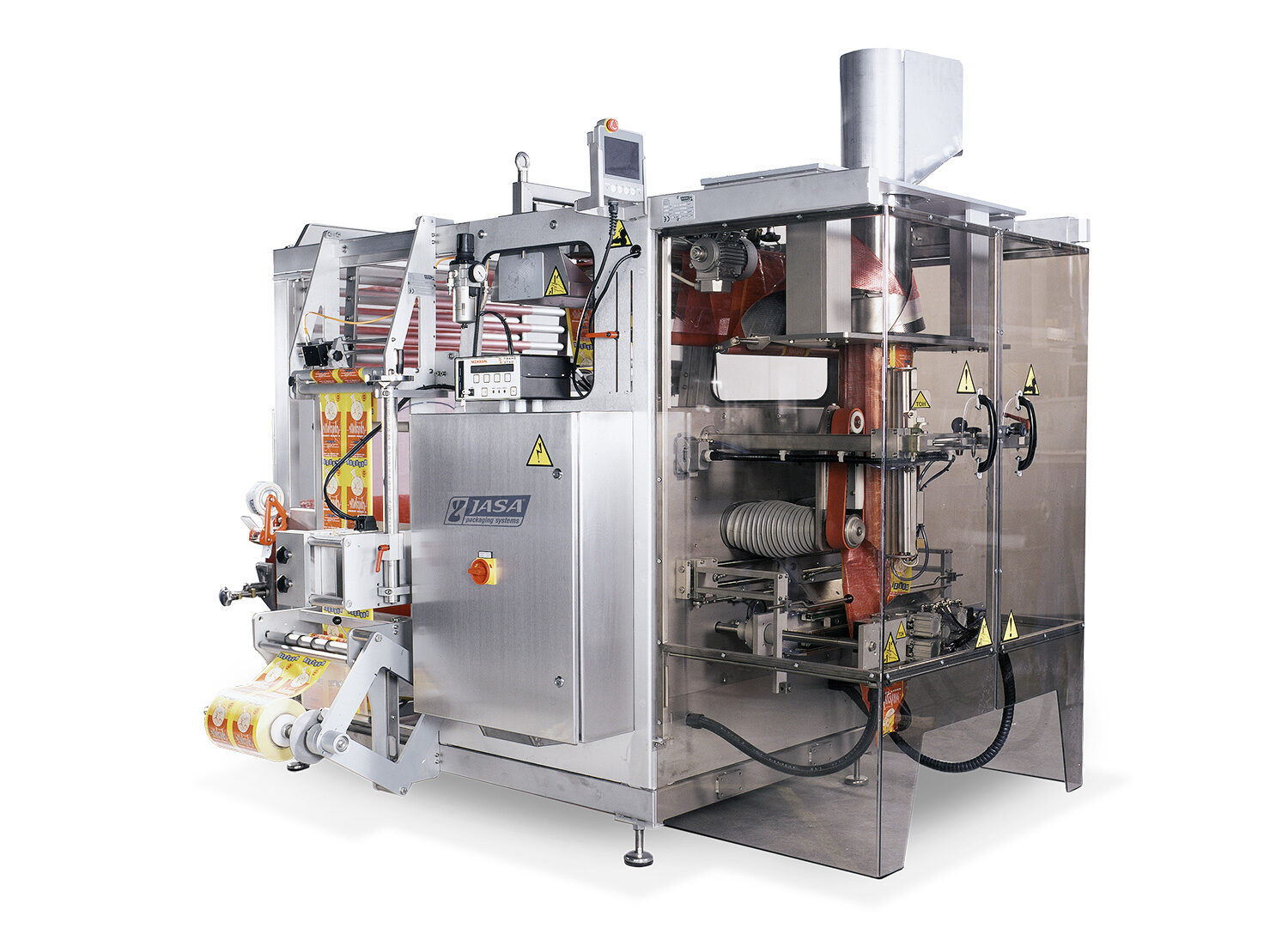

QUICK PACK JASA Multifunktionsverpackungsmaschine - Frontansicht
pointer

Photocells

For filling and bag length control

pointer

Construction

Stainless steel jet

pointer

Mains trigger

By means of a slide-in system, length of the main trigger can be adjusted

Other features

Equipment variants
Stainless steel construction
IP 65 stainless steel control cabinet
Computer controlled
Touch Screen Display
Up to 35 programmes can be stored and selected
Synchronisation with weighing machines possible
Photocell for bag length control
Photocell for filling control
Machine stop during film unwinding
Adjustable folding system
Grip hole punching
Safety control of sealing bars and automatic machine shut-off
Large safety doors for optimal maintenance
Accessories available
Multiple welding
Multiple welding and punching unit
Connection welding for foils and net change
Stand-up pouch unit
Printer system
Labelling system
Extra forming set for different tube diameters Tube diameters
Technical data
Bag width Up to 350 mm
Bag length 420 mm
Capacity Up to 38
Width (W) 1695 mm
Length (L) 2480 mm
Height (H) 1940 mm
Outer Ø 600 mm
Weight 840 kg
Power consumption 2.0 kW
Air supply 6 bar
Air consumption 400 l/min.
Packaging material
CLAF®-/PE-net, in combination with labelling tape
Front and back side printable
Vertisac, pre-made bags (net film combination)
PE, PP or laminated film

Downloads

Product brochure „JASA QUICK PACK Multifunctional Packaging Machine“
