VAC 956 C-PACK
Fully automatic net clipping machine

Fully automatic closing and separating of automatic nets.

For efficient and safe closing with clippers.

The VAC 956 C-PACK | fully automatic net clipper is suitable for fully automatic closing and separating of automatic nets. The fully automatic net clipper is ideal for bar packs. The net take-off is driven by net take-off rollers. The length of the net take-off can be regulated by a photocell. The integrated automatic tube changer allows the machine to run continuously without interruption.

Suitable products

Packaging

Equipment

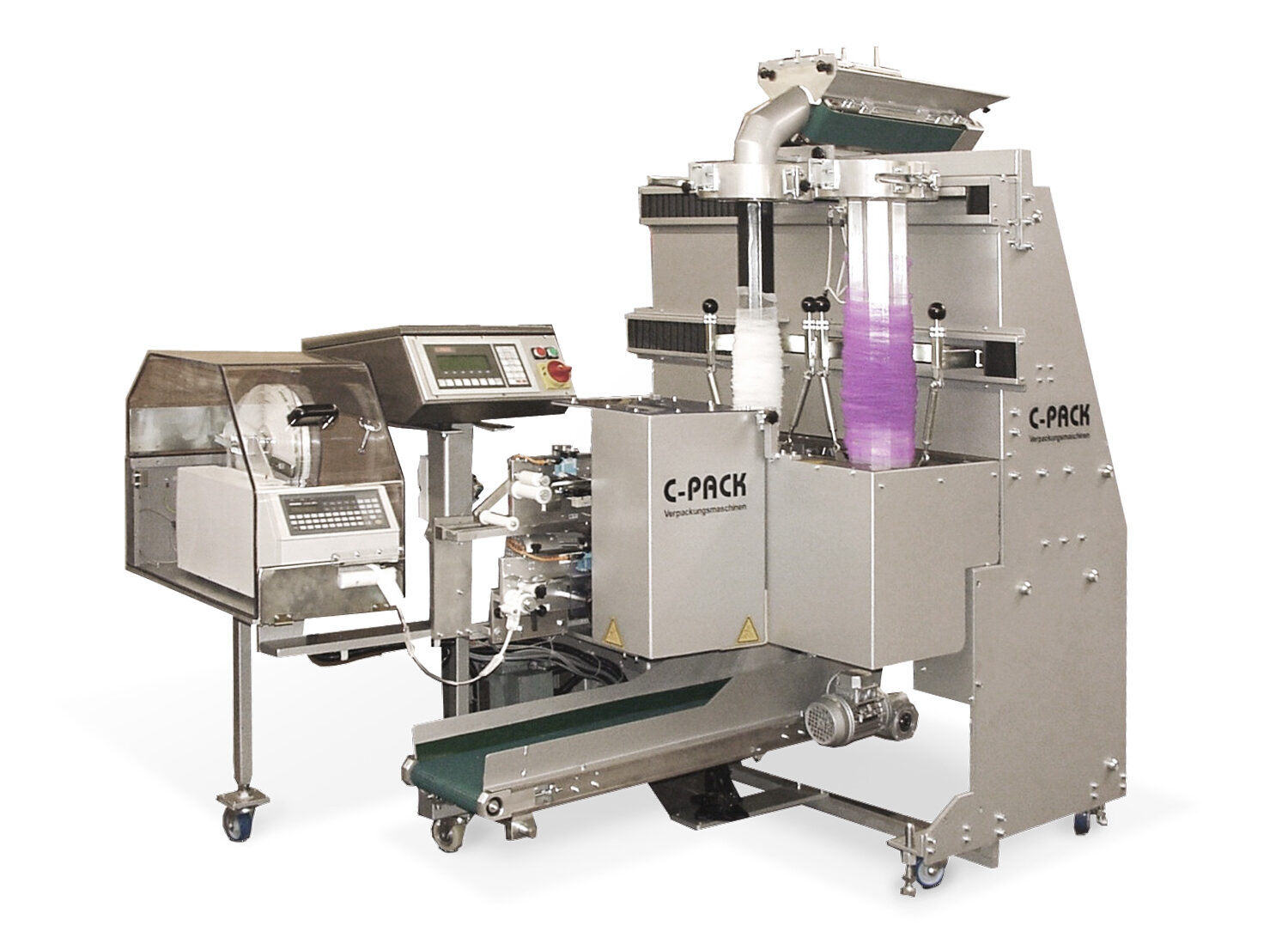

VAC 956 C-Pack Netzclipper - Frontansicht
pointer

Clip head

6 mm, pourable

pointer

Control

Microprocessor control with two-part plain text display

pointer

Net take-off

By driven net take-off roller by means of net retractor system

Other features

Equipment variants
Clip head 6 mm, pourable
Automatic tube changer for continuous operation without interruption
Net removal by driven net removal rollers
By means of net retraction system – length of net retraction adjustable by photocell
Microprocessor control with two-part
Mesh tube stand, mesh extraction cone
Accessories available
Programme memory
Transport devices for labelling material
Labelling units for printing and conveying labels and die-cut labels
Thermal barcode printer
Timing belt
Technical data
Electrical connection 230/400 VAC+N+PE, 50 Hz
Power consumption 1.5 kW
Machine weight 900 kg
Packaging weight 0.5 – 2.5 kg (depending on product)
Length 120 – 160 mm
Clip thickness ca. 0.35-0.45 mm
Clip width 5.0 mm
Clip length Per clip 20 mm
Net tube width 65-200 mm
Filling height 1640 mm
Packing capacity 33 Packs/min. (depending on type of band and packaged goods)

Downloads

Product brochure „VAC 956 C-PACK | Fully Automatic Mains Clipper“
Download now
