VAC 966 C-PACK
Net clipping machine

Fully automatic closing and separating of automatic nets with clippers.

For a secure and tight closure with clippers.

The VAC 966 C-PACK fully automatic net clipping machine is suitable for fully automatic closing and separating of automatic nets. This fully automatic net clipping machine is particularly suitable for packaging products such as apples. Two net tubes arranged at an inclination of 6 degrees with transport belts running through them in cycles form the integrated automatic tube changing system of the net clipping machine. This automatic tube changing system ensures possible continuous operation without interruption. The length of the net take-off can be regulated by the photocell.

Suitable products

Apples

Similar products

Equipment

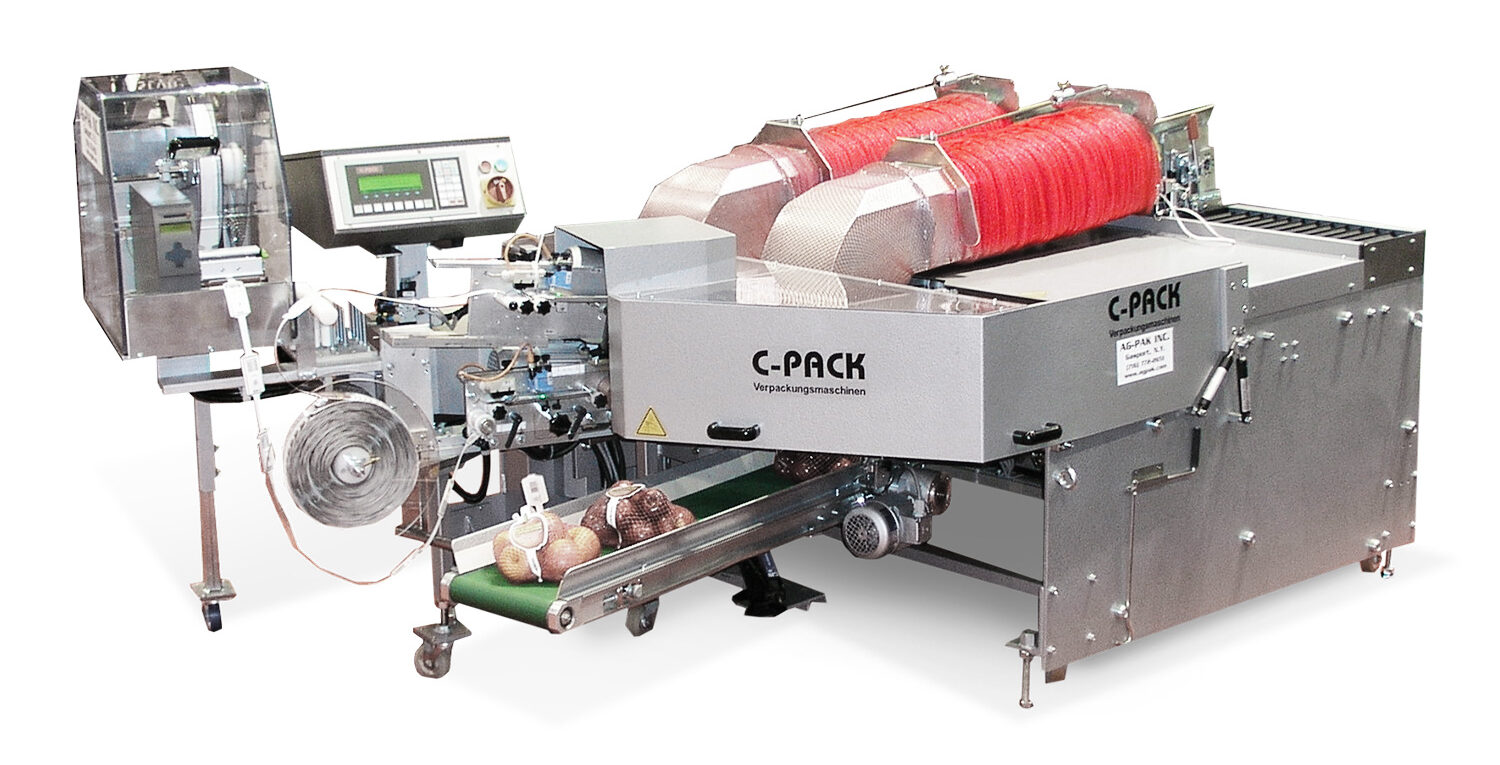

VAC 966 C-PACK Netzclipmaschine - Frontansicht
pointer

Clip head

6 mm, pourable

pointer

Control

Microprocessor control with two-part plain text display

pointer

Net take-off

By driven net take-off roller by means of net retractor system

Other features

Equipment variants
Clip head 6 mm, pourable
Automatic pipe changer, two net pipes arranged with an inclination of 6 degrees
with
transport belts running through in cycles
Net take-off by driven net take-off roller by means of net retractor system
Length of the net trigger adjustable by photocell
Microprocessor control with two-part plain text display
Net tube stand, net tube pulling cone
Accessories available
Programme memory
Transport equipment for labelling material
Labelling units for printing labelling flags and / or die-cut labels
Thermal barcode printer
Clock band
Technical data
Electrical connection 230/400 VAC+N+PE, 50 Hz
Power consumption 1,5 kW
Machine weight 900 kg
Packaging weight 0,5 – 2,5 kg (depending on product)
Length award flags 120-160 mm
Clip strength 0,35 – 0,45 mm
Clip width 0,5 mm
Length per clip 20 mm
Net tube width 230 – 260 mm
Belt transport width 200 mm, belt with 4 padded flaps
Filling height 995 mm (depending on the type of band and the product)
Packing capacity 40 Pack./min. (depending on the type of band and the product)
