VAC 929 C-PACK
Net clipping machine

Fully automatic closing and separating of automatic nets.

For efficient cutting and safe closing of nets.

The VAC 929 C-PACK fully automatic net clipper is suitable for efficient and fully automatic closing as well as separating of automatic nets with lumpy goods such as potatoes or citrus fruits. The net take-off is controlled by means of a slide-in system, whereby the desired length of the net take-off can also be set. Continuous, uninterrupted operation of the machine is possible without any problems thanks to the automatic tube changing system.

Suitable products

Potatoes

Other chunky goods

Onions

Citrus

Equipment

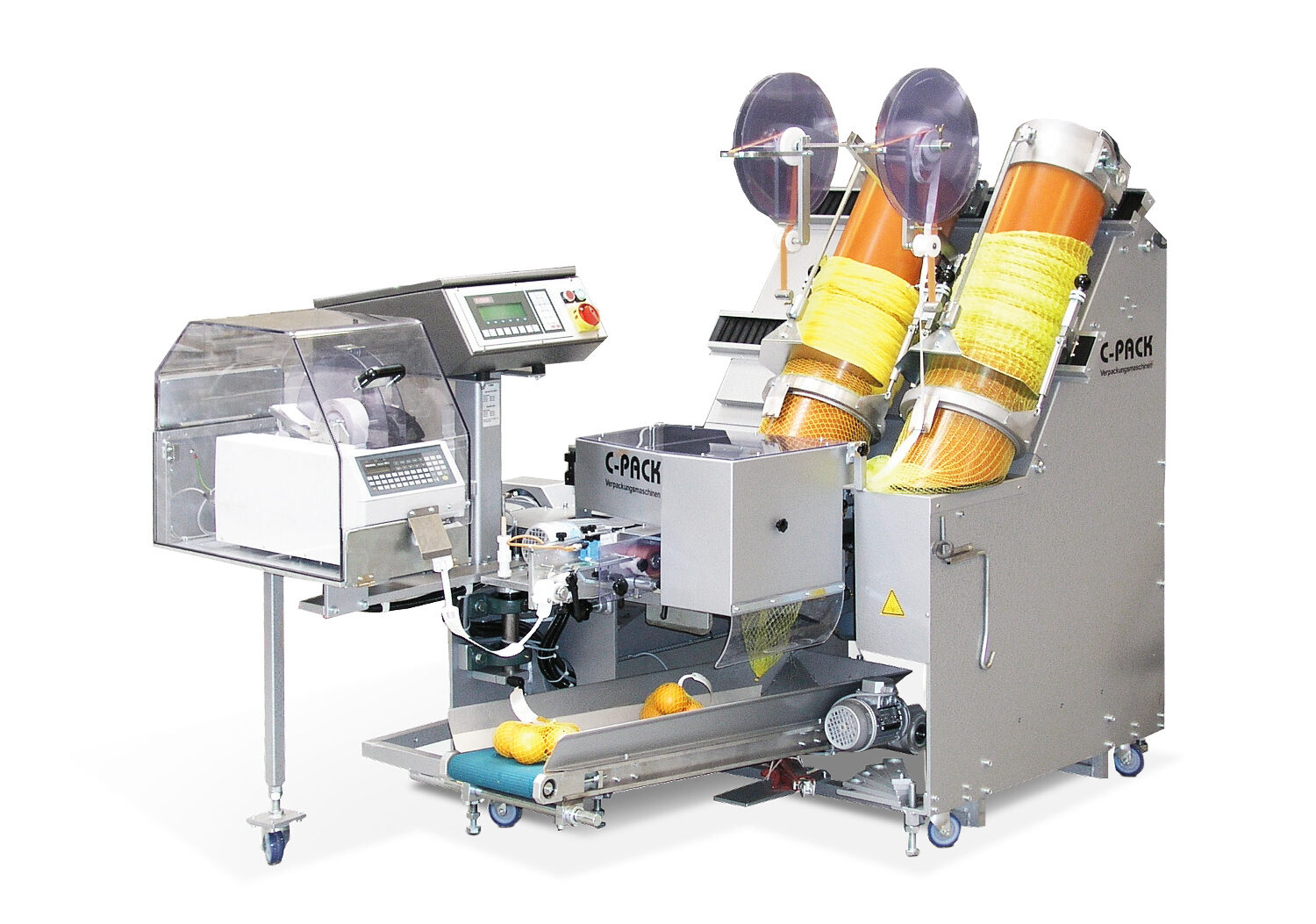

VAC 929 C-Pack Netzclipper - Frontansicht
pointer

Clip head

6 mm, pourable

pointer

Control

Microprocessor control with graphic-capable plain text display

pointer

Mains trigger

By means of slide-in system, length of main trigger adjustable

Other features

Equipment variants
Clip head 6 mm, swivels out
Automatic tube changer for continuous operation without interruption
Mains outlet by means of slide-in system, length of mains outlet
Microprocessor control with graphic-capable plain text display
Net tube stand, net pulling cone
Programme memory
Safe for the user, CE compliant
HACCP standard
Accessories available
Transport devices for labelling material
Labelling units to print and convey labelling flags and/or die-cut labels
Thermal barcode printer
Timing belt
Technical data
Electrical connection 230/400 V N+PE, 50 Hz
Power consumption 1.0 kW
Machine weight 650 kg
Package weight: 0.5 – 5.0 kg (depending on product size)
Length of the labelling flags 120 – 160 mm
Clip material
Thickness 0.35 mm – 0.45 mm
Width 5.0 mm
Length per clip 20 mm
Net tube Ø 200-250 mm (other Ø on request)
Filling height 1.540 mm
Packing capacity 55 Pack./ min. (depending on type of band and packaged product)
